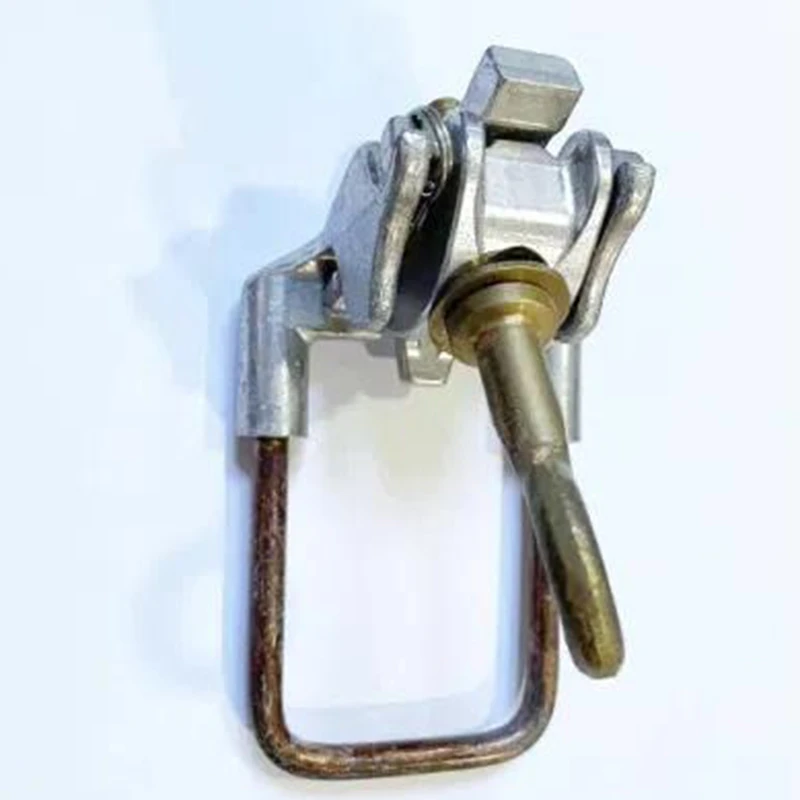

ACSR 2-80 Hot Wire Clip

ACSR 2-8/0 Hot Wire Clip is a lightweight, high-conductivity aluminum alloy tap connector engineered for 10kV live working (hot line) on overhead ACSR (Aluminum Conductor Steel Reinforced) lines. It enables safe, fast, and reliable branch connections, grounding, and testing without power shutdown—ideal for distribution network maintenance and emergency repairs.

Key Features

• ✅ Live Working Optimized: Install/remove under 10kV energized lines; no outage required

• ✅ ACSR Specific Design: Precision-machined jaws for perfect grip on ACSR 2-8/0 conductors

• ✅ High-Strength Aluminum Alloy: Lightweight, excellent conductivity, anti-corrosion, durable

• ✅ Tin-Plated Contact Area: Low contact resistance, prevents oxidation, ensures stable current flow

• ✅ Spring-Loaded Mechanism: Self-holds on conductor during installation; compatible with standard hot stick

• ✅ Wide Application: Suitable for branch tapping, grounding, and testing on overhead lines

• ✅ Reusable & Reliable: Bolted design for repeated use; vibration-resistant connection

Technical Specifications

• Model: ACSR 2-8/0 Hot Wire Clip
• Material:
• Body: High-strength aluminum alloy (6063-T6)
• Contact: Tin-plated copper
• Spring: High-carbon spring steel
• Bolts: Stainless steel
• Voltage Rating: 10kV (medium voltage)
• Conductor Range:
• ACSR: 2-8/0 AWG (diameter ~10.2–19.7mm)
• Aluminum/Copper: 6–120mm²
• Working Temperature: -40°C to 125°C
• Standard: GB/T 2314, DL/T 759, IEC 61238
• Installation: Hot stick (insulated operating rod)
• Weight: ~0.3kg
• Finish: Natural aluminum tin-plated (anti-corrosion)

Applications

• 10kV overhead ACSR line live branch tapping

• Distribution network hot line maintenance

• Grounding and testing connections for energized lines

• Jumper connections for pole-mounted transformers and switchgear

• Temporary power takeoff and emergency repairs

 Product Specifications (Shopify Block)

• Product Name: ACSR 2-8/0 Hot Wire Clip

• Model: ACSR 2-8/0

• Material: Aluminum Alloy Body, Tin-Plated Copper Contact

• Voltage: 10kV (Live Working)

• Conductor Range: ACSR 2-8/0 AWG (~10.2–19.7mm); 6–120mm² Al/Cu

• Standard: GB/T 2314, DL/T 759

• Feature: Hot line install, no power outage, ACSR specific

• Application: Overhead Line, Distribution Network, Grounding & Testing
