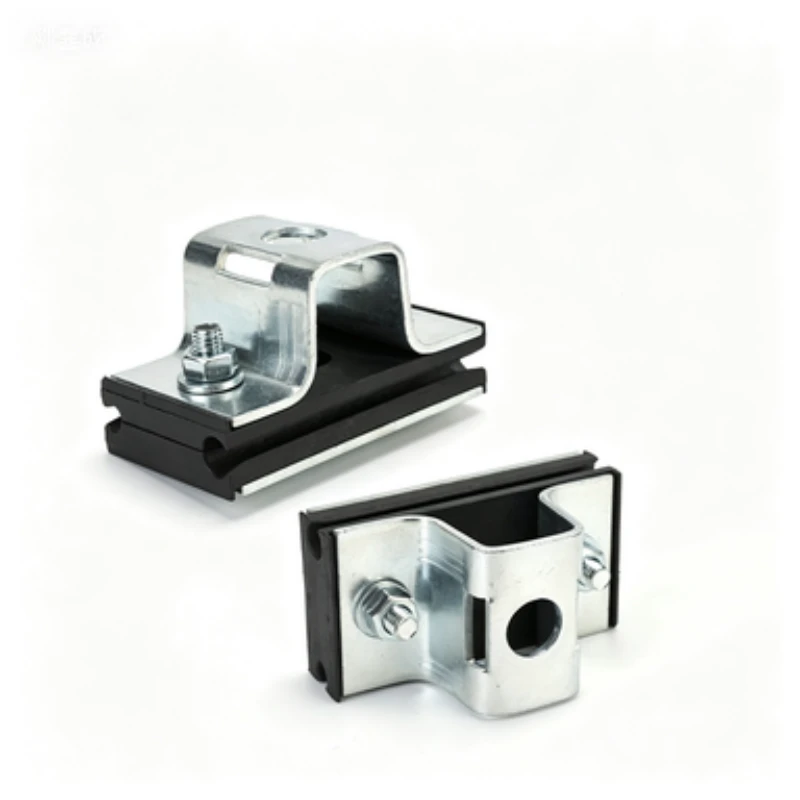

SSA Suspension Clamp

SSA Suspension Clamp – FTTH Figure-8 Cable Aerial Suspension Clamp

SSA series suspension clamps are lightweight, robust aerial fittings specifically designed for suspending FTTH Figure-8 (self-supporting) fiber optic cables on poles, walls, and brackets in outdoor FTTX networks. Ideal for short-to-medium span distribution lines.

Key Features

• ✅ Figure-8 Cable Optimized: Two-groove design fits messenger wire Ø4–5mm and Ø5–9mm.

• ✅ High Mechanical Strength: 8kN Minimum Breaking Load (MBL)for secure long-span support (up to 70–120m).

• ✅ UV & Weather Resistant: Galvanized steel plates UV-stabilized thermoplastic insert, outdoor lifespan ≥10 years.

• ✅ Cable-Safe Design: Soft inner lining prevents jacket damage and insulation wear.

• ✅ Tool-Free Installation: Bolted design, easy mounting on hooks, bands, or brackets.

• ✅ Corrosion Resistant: Hot-dip galvanized hardware for coastal/humid environments.

• ✅ Straight & Light Angle Use: Suitable for line angles ≤25°.

Applications

• FTTH Figure-8 fiber optic cables (with messenger wire)

• Aerial FTTX distribution networks

• Outdoor pole/wall mounting

• Short-span overhead lines (residential, industrial)

• Telecommunication & broadband projects

Material

• Plates: Hot-dip galvanized steel

• Insert: UV-resistant thermoplastic

• Hardware: Galvanized steel / 304 stainless steel

Standards & Certifications

• CE, RoHS, ISO9001

• Compliant with FTTH aerial fitting standards

• Specifications

Model: SSA (for Figure-8 cable) Cable Range: Ø4–5mm / Ø5–9mm (messenger wire) MBL: 8 kN Span Length: Up to 70–120m Weight: 0.25–0.35 kg/pc Color: Silver (galvanized) / Black (insert) Package: 100 pcs / carton

 Shipping & Package

• Unit Weight: 0.3 kg approx

• Carton Size: 35×25×18 cm / 100 pcs

• HS Code: 8517709000

• Origin: China
