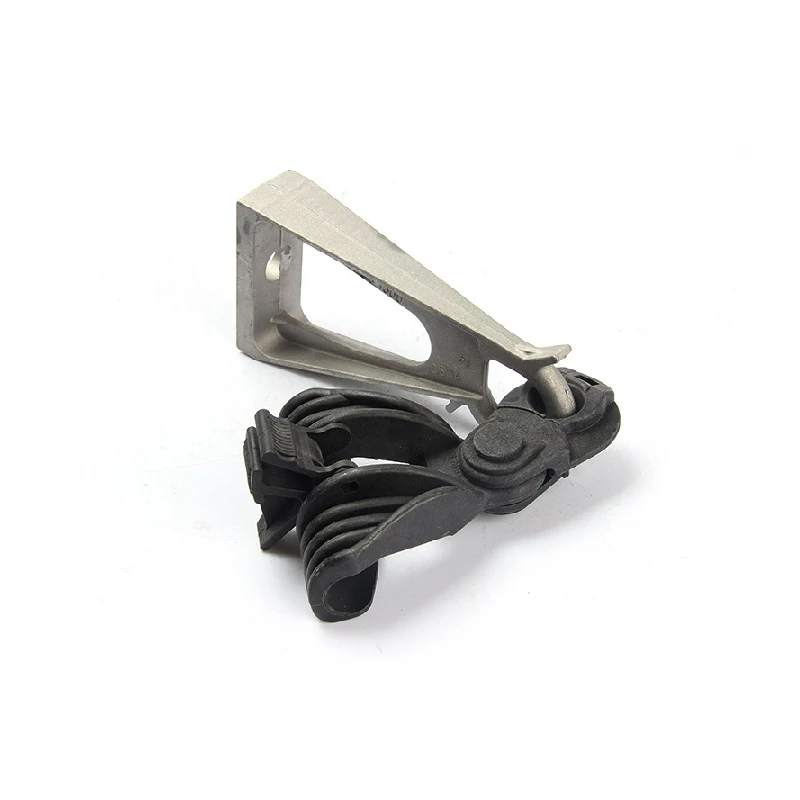

Suspension Clamp

Suspension Clamp (Bolted Type) is a traditional high-strength fitting used to suspend conductors (ACSR/AAC/AAAC) and OPGW/ADSS cables from insulator strings on overhead transmission lines. It provides reliable vertical support, controls conductor movement, and protects against bending stress—widely used in 10kV–500kV networks, straight towers, and general-purpose installations.

Key Features

• ✅ High-Strength Ductile Iron/Aluminum Alloy: Robust structure, 30 year service life

• ✅ Precision-Machined : Curvature ≥8× conductor diameter, reduces bending fatigue

• ✅ Hot-Dip Galvanized Hardware: Excellent corrosion resistance for coastal/polluted areas

• ✅ High Grip Strength: Holds 15%–25% of conductor RTS, no slipping under wind/ice

• ✅ Flexible Rotation: Swivel design allows ≤25° angular adjustment, reduces stress concentration

• ✅ Bolted Installation: Simple, reusable, no special tools required

• ✅ Wide Compatibility: Fits ACSR, AAC, AAAC, GJ, OPGW (Ø5–40mm)

Technical Specifications

• Model:

• XGH-2, XGH-3, XGH-4, XGH-5 (standard)

• XGT-1, XGT-2, XGT-3 (heavy-duty)

• Material:

• Body: Ductile iron / 6061-T6 aluminum alloy

• Bolts: Grade 8.8 hot-dip galvanized steel

• Cotter pin: Stainless steel

• Conductor Diameter: Ø5.0–38mm (ACSR LGJ 35/6 ~ 185/30)

• Vertical Breaking Load: 40–70 kN (model-dependent)

• Working Temperature: -40°C to 85°C

• Standards: DL/T 756, GB/T 2314, IEC 61238, IEEE 998

• Finish: Hot-dip galvanized (≥85μm) / aluminum anodized

• Weight: 0.9–5.0 kg (per set)

Applications

• 10kV–500kV overhead transmission & distribution lines

• Suspending ACSR/AAC/AAAC conductors and OPGW/ADSS cables

• Straight line towers, general spans, and standard suspension points

• Coastal, desert, or industrial polluted zones (anti-corrosion)

• Projects requiring reusable, bolted installation

 Product Specifications

• Product Name: Suspension Clamp (XGH/XGT Type)

• Model: XGH-2, XGH-3, XGH-4, XGH-5; XGT-1, XGT-2, XGT-3

• Material: Ductile Iron / Aluminum Alloy, Galvanized Steel, Stainless Steel

• Type: Bolted Suspension Fitting (Trunnion Type)

• Conductor Fit: ACSR, AAC, AAAC, GJ, OPGW (Ø5–40mm)

• Voltage Rating: 10kV–500kV

• Standard: DL/T 756, GB/T 2314, IEC 61238

• Feature: High Grip, Anti-Corrosion, Swivel Design, Reusable

• Application: Overhead Line Conductor/Cable Suspension
