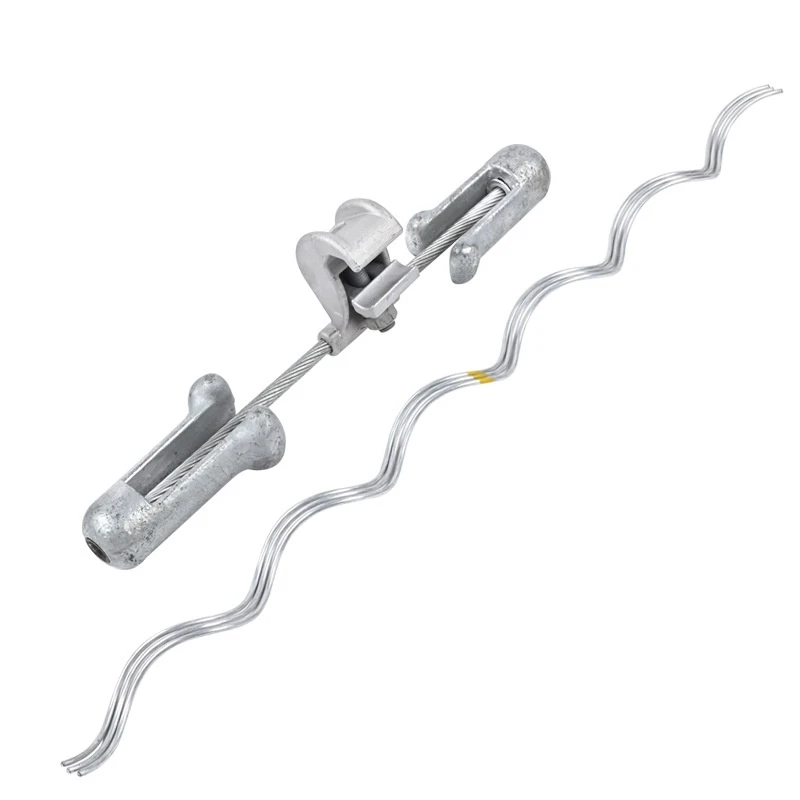

FRYJ Anti-Vibration Hammer

FRYJ Anti-Vibration Hammer is a high-efficiency Stockbridge-type vibration damper designed to suppress aeolian vibration on overhead transmission lines (ACSR, aluminum, steel core, and ground wires). Its asymmetric tuning-fork design covers multiple resonance frequencies, reduces conductor fatigue, and extends line service life—critical for long-span, high-voltage overhead networks.

Key Features

• ✅ Asymmetric Tuning-Fork Design: Two different-weight heads for broadband vibration suppression (5–50 Hz)

• ✅ Preformed Rod Grip: Uniform stress distribution, no conductor damage, easy installation

• ✅ Hot-Dip Galvanized: Superior anti-corrosion, 30 year service life in harsh environments

• ✅ Wide Conductor Compatibility: Fits ACSR, aluminum, and steel ground wires (GJ)

• ✅ High Mechanical Strength: Withstands wind, ice, and temperature fluctuations

• ✅ Tool-Free Installation: Quick attachment with preformed helical rods

• ✅ ISO 9001 & IEC Certified: Complies with global power utility standards

Technical Specifications

• Model: FRYJ Series (FRYJ-1/G, 1/2, 1/3, 2/G, 2/4, 3/G, 3/5, 4/5, 4/6)
• Material:
• Hammer Heads: Ductile iron, galvanized
• Spiral Rods: High-carbon steel, hot-dip galvanized
• Preformed Clamp: Aluminum alloy
• Conductor Range:
• FRYJ-1/G: GJ-35 (Ø6.4–8.6 mm)
• FRYJ-2/G: GJ-50/80 (Ø8.6–12.0 mm)
• FRYJ-1/2: ACSR 95/20 (Ø9.3–11.0 mm)
• FRYJ-2/4: ACSR 185/30–240/40 (Ø15.0–19.0 mm)
• Dimensions (L×H): 280–480 mm × 45–70 mm
• Weight: 1.6–4.3 kg (model-dependent)
• Vibration Frequency: 5–50 Hz
• Working Temperature: -40°C to 85°C
• Standards: GB/T 2314, DL/T 1098, IEC 61897, ISO 9001
• Finish: Hot-dip galvanized (zinc coating ≥85 μm)

Applications

• Overhead transmission lines (10kV–500kV)

• ACSR, aluminum, and steel-reinforced conductors

• Ground wires (GJ series) for lightning protection

• Long-span river crossings and mountainous terrain lines

• Power distribution networks and utility transmission projects

 Product Specifications (Shopify Block)

• Product Name: FRYJ Anti-Vibration Hammer / Stockbridge Damper

• Model: FRYJ-1/G, 1/2, 1/3, 2/G, 2/4, 3/G, 3/5, 4/5, 4/6

• Material: Ductile Iron Heads, Galvanized Steel Rods, Aluminum Clamp

• Type: Asymmetric Tuning-Fork Stockbridge Damper

• Conductor Fit: ACSR, Aluminum, Steel Ground Wire (GJ)

• Frequency Range: 5–50 Hz

• Standard: GB/T 2314, DL/T 1098, IEC 61897

• Feature: Broadband Vibration Suppression, Preformed Rod Install

• Application: Overhead Transmission & Distribution Lines
